設備紹介 / MACHINES

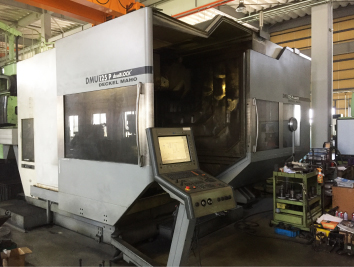

DMU-125P(5軸加工機)
5-Axis Machining Centre

X軸・Y軸・Z軸・回転軸・傾斜軸を同時に動作させる同時5軸加工が可能です。ワンチャックであらゆる角度から加工が可能なため、加工精度の向上及び段取り変えの工程が削減される事による納期の短縮を実現しました。

This machine is able to operate in X, Y, Z, rotation and, tilt axis at the same time. It enables shorter lead times with more accurate machining through reduced input requirements.

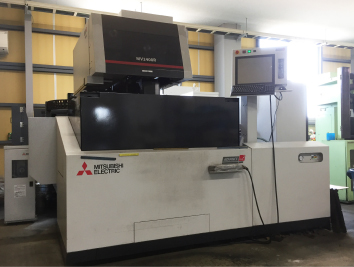

MV2400R(ワイヤー放電加工機)
Wire Cut Electrical Discharge Machine

高性能ワイヤ放電加工機。ワイヤーによる微細な二次元形状及びテーパー加工を可能にします。

The high performance wire cutting machine has capacity for fine detail work on 2D shapes and tapered cutting.

V33,V77(マキノ)
Makino's High Precision Machining Centre

  • 小物の精密加工に最適な加工機V33と中大物までの高精度高速加工が可能なV77。高速回転による仕上加工で活躍しています。

    The V33 is, the optimal machine for precision work on smaller seized objects. The V77 is, a high precision machine suitable for medium to larger sized objects. They are useful for finishing with high speed cutting.

主要設備Main Equipment

●機械 Machine
  種類
Machine
型式
Model
製造元
Maker
台数
Quantity
最大移動量(㎜)
Maximum Shift
X軸
-axis
Y軸
-axis
Z軸
-axis
マシニングセンタ
Machining Centre
門型MC
Double-column MC
MCV-A オークマ
Okuma
1 3,000 1,600 1,000
MCV-AⅡ オークマ
Okuma
1 3,000 1,600 1,000
縦型MC
Vertical MC
MD550VB オークマ
Okuma
1 1,000 550 550
M852V 大隈豊和
Okuma Howa
1 2,050 850 750
V77 マキノ
Makino
1 1,200 700 650
V33 マキノ
Makino
1 650 450 350
VM5Ⅲ OKK 1 820 510 510
5軸加工機
5-Axis MC
DMU-125P DMG 1 1,250 1,000 1,000
グラファイト加工機
Graphite Milling Machine
SNC86-A30 マキノ
Makino
1 800 600 400
フライス
Milling Machine
NCフライス
NC Milling Machine
M-468V 大隈豊和
Okuma Howa
1 - - -
2RNC 大隈豊和
Okuma Howa
1 - - -
汎用フライス盤
Milling Machine
BGⅡJ-85 牧野フライス
Makino
2 - - -
旋盤
Lathe
NC旋盤
NC lathe
V80R 大隈豊和
Okuma Howa
1 Φ800 - -
LH-55N オークマ
Okuma
1 Φ1,100 - -
LH-55N T2000 オークマ
Okuma
1 Φ1,100 - -
汎用 旋盤
Lathe
CLL1000 中部工機
Chubu Koki
1 - - -
ボール盤
Drilling Machine
ラジアルボール盤
Radial Drilling Machine
TRE1700D 岡田テクニカ
Okada
1 - - -
研削機
Grinder
平面研削盤
Surface Grinder
GS-BH3 黒田精工
Kuroda Seiki
1 380 110 -
SGW64 ナガセ
Nagase
1 600 400 -
SGW4 ナガセ
Nagase
1 470 270 -
FL60/120 日平
Nippei
1 1,200 600 -
PSG-208DX 岡本工作機械
Okamoto Kosaku
1 2,000 800 -
SGC94 ナガセ
Nagase
1 900 400 -
放電加工機
Electrial
DischargeMachine
ワイヤーカット放電加工機
Wire-cut EDM
FA20 三菱電機
Mitsubishi
1 500 350 -
FA20PS 三菱電機
Mitsubishi
1 500 350 -
DWC-200U 三菱電機
Mitsubishi
1 400 750 -
MV2400R 三菱電機
Mitsubishi
1 1,050 820 -
型彫放電加工機
NC EDM
M55JG 三菱電機
Mitsubishi
1 450 350 -
M55J 三菱電機
Mitsubishi
1 450 350 -
EA12VM 三菱電機
Mitsubishi
1 400 300 -
その他
Others
鋸盤
Metal Steel Cutting Machine
H450H アマダ
Amada
1 - - -
鋸盤(高速)
Metal Steel Cutting Machine (High Speed)
P-240F 津根
Tsune
1 - - -
彫刻機
Carving Machine
SG-8 坂崎鉄工
Sakazaki
1 - - -
三次元スキャナー
3D Scanner
VIVD910 コニカミノルタ
Konicaminoruta
1 - - -
三次元測定機
3D Measuring Instrument
CRT-AC776 ミツトヨ
Mitsutoyo
1 - - -
レーザー表面加機
Laser Surface Processing Machine
PF32A Sodick 1 - - -
サンドブラスト
Sand Blast
SGK-4DT 不二製作所
Fuji
1 - - -
●ソフト Soft
種類
Software
型式
Model
製造元
Maker
台数
Quantity
CAD CADMEISTER UNISYS 3
3D CAM DEPCAM Machinesol 2
CAD・CAM TOPSOLID コダマコーポレーション
Kodama
2
NCシミュレーション
NC Simulation
NCVIEW Simple Products 1
NCVIEW Neo Simple Products 1
DNC 装置
DNC Device
MX1 Tactx -
